5D wheel alignment with 5pcs cameras 5pcs targets high precision,smaller space needed, support Android system, support APP download in mobile phone.
Product feature:
Wireless, no electronic sensor and components, can avoid some questions caused by sensor error. Measurement precision is not affected by the unbalance of vehicle and car lift. Wheel and rim compensation is unnecessary for measurement process. The advantage increase the accuracy and reliability of measurement, improve the working efficiency.
1)Five high resolution cameras respectively photographing five targets along with closer distance between cameras and targets offer clearer photographs and more precise measurement.
2)Apply high strength plastic target, which is lighter, thinner and stronger.

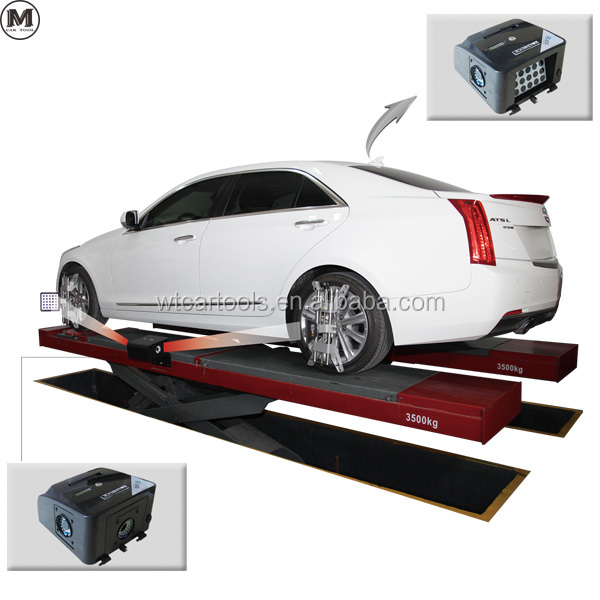

3)The camera installed onto the car lift, with short shooting distance, the measurement data is
more precise; This machine is made for saving the operation space.
4) Multi-interfaces can be easily switched.

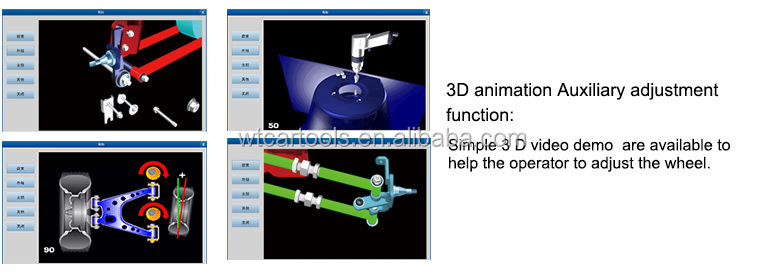

5) Assistant 3D animation for adjusting

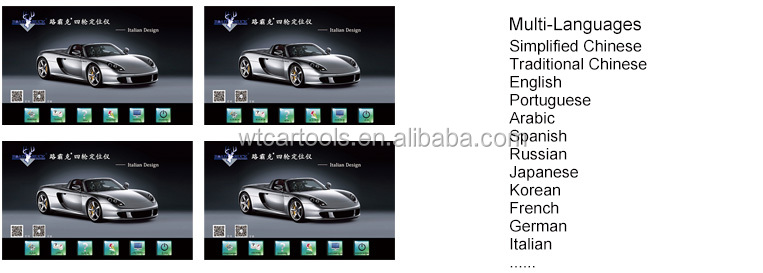

6) Multi-languages including Chinese, English ,Portuguese, Arabic, Spanish, Russian, Japanese, Korean, French, German, Italian
7)Cooperate with ALLDATA ,original vehicle database owning more than 20,000 original vehicle databases

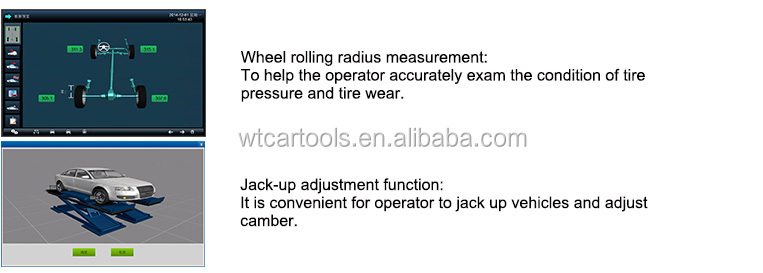

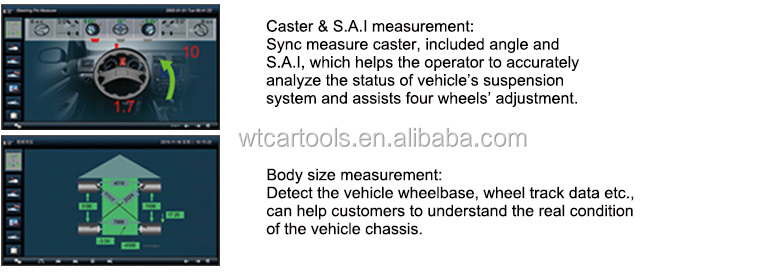

8) Car body dimension & wheel rolling radius measurement.
9) Jack-up adjustment function, it’s convenient for the operator to lift vehicles and adjust camber.
10)Smaller space needed, more precise result.
Technical parameters:
| ITEMS | Front wheel measurement precision | Front wheel measurement range | Rear wheel measurement precision | Rear wheel measurement range |
| TOE | ±0.02 | ±20° | ±0.02 | ±20° |
| CAMBER | ±0.02 | ±15° | ±0.02 | ±15° |
| S.A.I | ±0.02 | ±26° | x | x |
| CASTER | ±0.02 | ±26° | x | x |
| THRUST ANGLE | x | x | ±0.02 | ±5° |

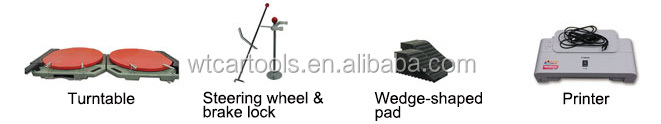

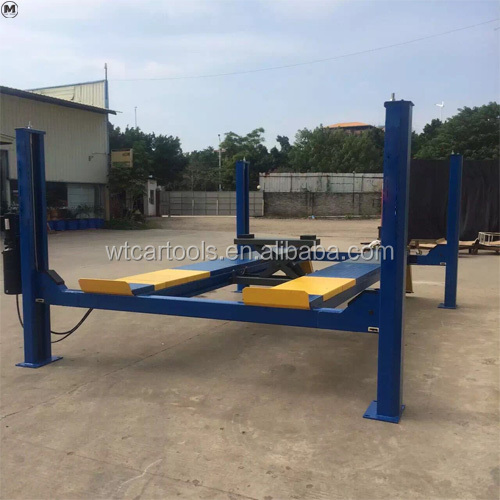

More items we offer:
