AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle

Name: AC220V NHD8101 Headlight Testing Machine For Automotive And Motorcycle
Brand: NANHUA
Price: 1 USD

China AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle wholesale

Place of Origin : Guangdong, China

Brand Name : NANHUA

Model Number : NHD-8101

Packaging Details : standard export packing

Supply Ability : 200 Set/Sets per Week

Price : $1,250.00/sets 1-4 sets

Certification : CE

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 15

Model : 124 Spider (348_)

Year : 2016-

Type : headlight tester

Voltage : 220v

Car Fitment : Abarth

Power : W

Applicable Models : universal

Combination : SDK

Warranty : 12 Months

Product name : NHD-8101 Auto Headlight Tester

Power Supply : AC220V ±10%

Power Consumption : <2W

Weight : 30Kg

Dimension of The Rail Guide : 100mm x 3,000mm(length)

length : 3,000mm

Outer Dimension : 605mm(W) x1,600mm(H) x 595mm(D)

Central Height of Headlight : 50cm ~ 130cm

Light Intensity : 0 ~ 60,000cd

Deviation of Optical Axis : Up 1°30~ Down 2°30

Port : shenzhen guangzhou

Contact Now

Product Description

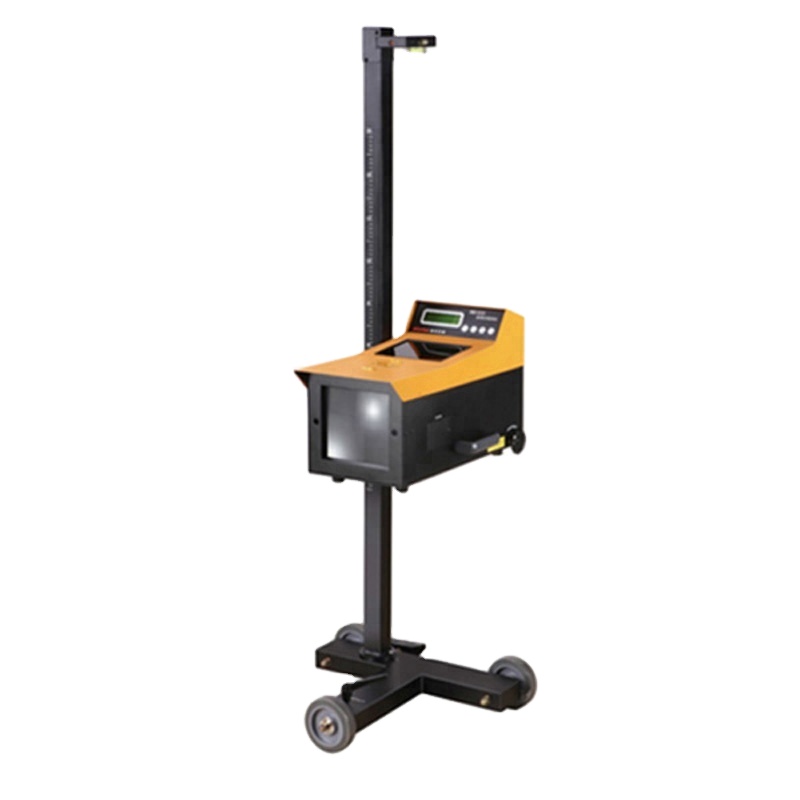

NHD-8101 Auto Headlight Tester car headlight testing machine
Main Technical Specifications
Measuring Range
Central Height of Headlight:50cm ~ 130cm
Light Intensity: 0 ~ 60,000cd (100,000cd)
Deviation of Optical Axis:
Up 1°30 ~ Down 2°30
(up 20cm/10m ~ down 40cm/10m) Left 2°30′ ~ Right 2°30′
(left 40cm/10m ~ right 40cm/10m)

General Features

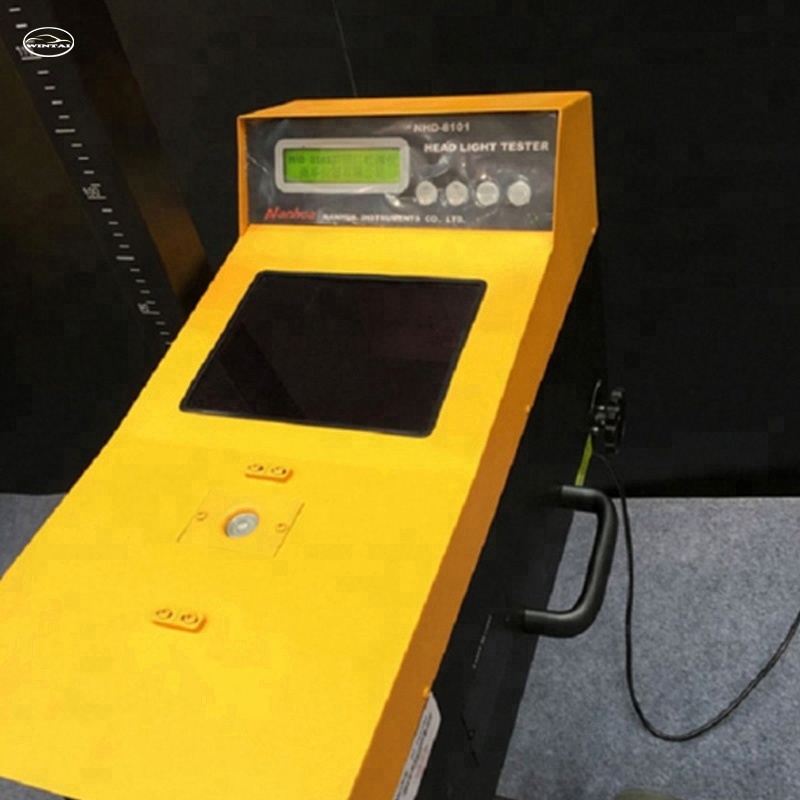

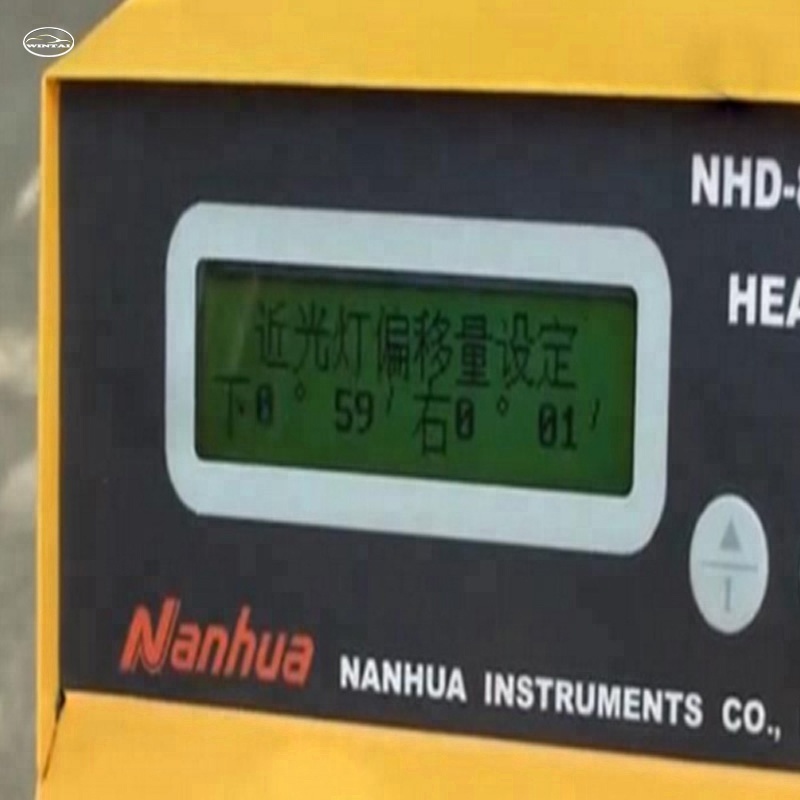

1NHD-8101 Headlight Tester is for testing the luminous intensity, light height and optic deviation of the headlight of automotive and motorcycle. It is equipped with Chinese or English LCD display, standard RS-232C interface, analog data output interface and battery-operated in low power consumption mode. Assembly and disassembly are fast, it is very easy to move.
2 With the advantages of easy operation and accurate measurement, it is suitable for use in vehicle inspection stations and mobile inspection lines for headlight inspection. It is also suitable for use in vehicle repairing and maintenance shops for adjusting and testing the illumination position of the headlight beams. 3Provide auxiliary angular calibration to headlight testers. (The instrument automatically indicates the adjustment direction of
the headlight tester)

Measurement Accuracy
Light Intensity of High Beam: ±12%
Central Height of Headlight: ±1cm
Optical Deviation: 12
Power Supply:
AC220V ±10% 50Hz ±1Hz or 1 DC9V battery/ 6 DC1.5V batteries (for laser)
Power Consumption: <2W (for complete set)
Weight: 30Kg
Dimension of The Rail Guide:
100mm × 3,000mm(length)
Outer Dimension:605mm(W) × 1,600mm(H) × 595mm(D)

AC220V NHD-8101 Headlight Testing Machine For Automotive And Motorcycle

Specification

item	value
Type	headlight tester
Voltage	220v
Power	W
Applicable Models	universal
Combination	SDK
Place of Origin	China
	Guangdong
Brand Name	NANHUA
Model Number	NHD-8101
Warranty	12Months
Product name	NHD-8101 Auto Headlight Tester
Power Supply	AC220V ±10%
Power Consumption	<2W
Weight	30Kg
Dimension of The Rail Guide	100mm x 3,000mm(length)
length	3,000mm
Outer Dimension	605mm(W) x1,600mm(H) x 595mm(D)
Central Height of Headlight	50cm ~ 130cm
Light Intensity	0 ~ 60,000cd
Deviation of Optical Axis	Up 1°30~ Down 2°30

Packing & Delivery

standard export packing
