Affordable Economic Car Spray Booth with Advanced Heating System and Air Speed

Name: Affordable Economic Car Spray Booth with Advanced Heating System and Air Speed
Brand: WINTAI
Price: 7 USD

China Affordable Economic Car Spray Booth with Advanced Heating System and Air Speed wholesale

Type : Spray Booths

Power : 12KW, 12KW

External Size : 7000*5543*3350mm, 7000*5543*3350mm

Internal Size : 6900*3900*2650mm, 6900*3900*2650mm

Voltage : 220V/380V

Disc Dia. : NM

No Load Speed : NM

Place of Origin : Guangdong, China

Brand Name : WINTAI

Model Number : WW0602

Warranty : 1 year, 1 year

Color : red,white, orange,blue

Wall : 50mm

Heating System : diesel/gas/LPG burner

Air Flow : 25000

Air Speed : 0.3-0.5

Vehicle Suited : Saloon Car Jeep

Packaging Details : standard export package

Port : Guangzhou/Shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $7,548.00/sets >=1 sets

Contact Now

Product Description

2023 economic car spray booth
Configuration:

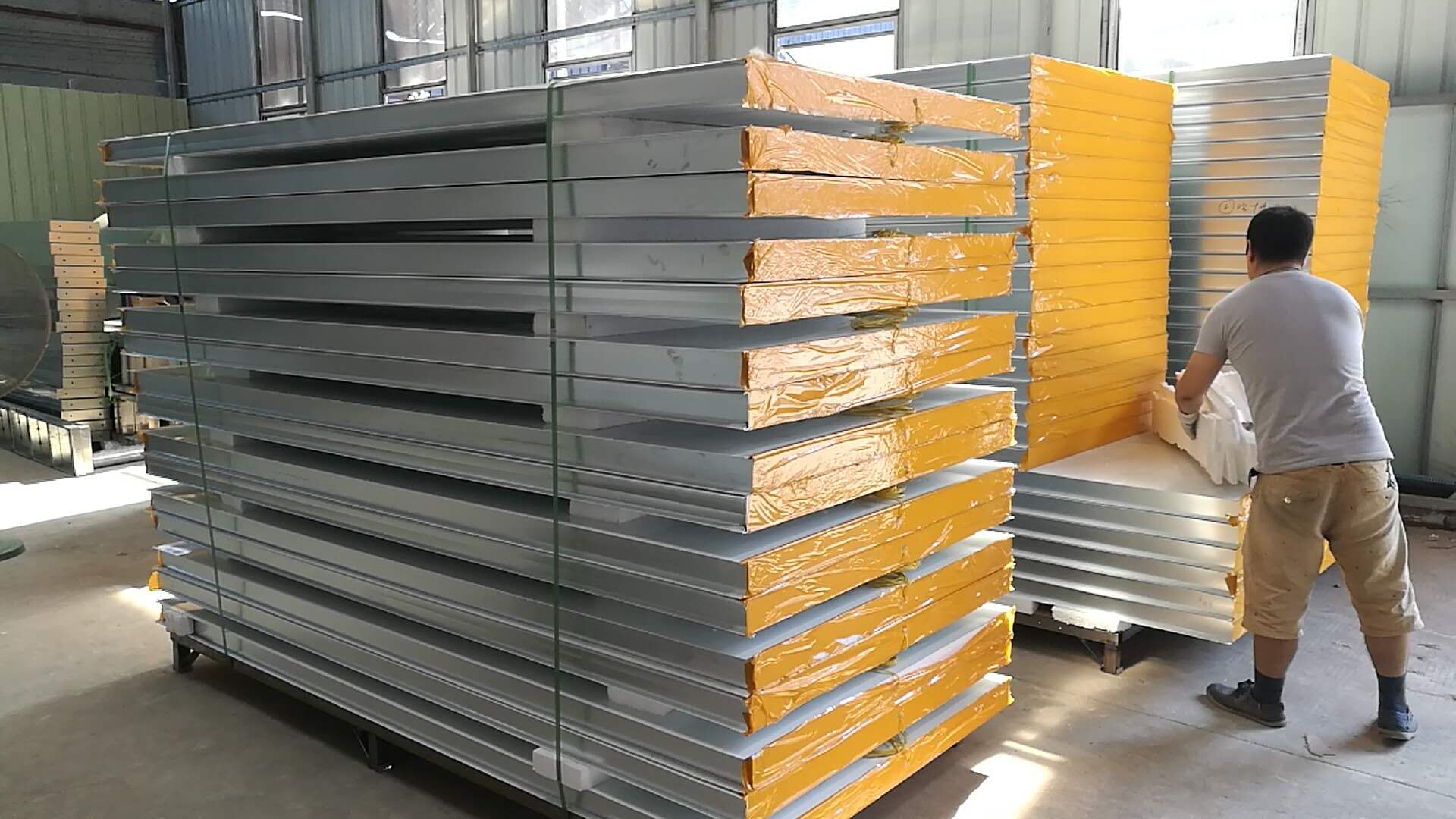

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel.

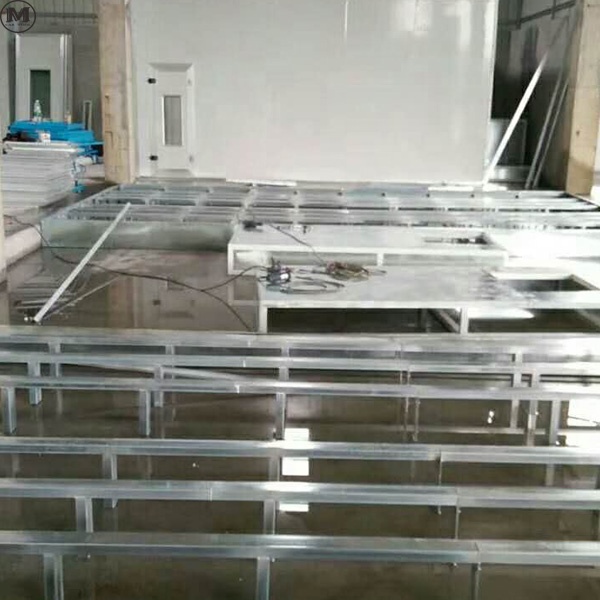

2. Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
3. Door: 3 pcs of front doors with aluminum frame Size: 3000(w) x 2600(h). 1 pc of emergency door.
4. Air Circulation System: 2x3kw intake fan,1x4kw exhaust fan. BELIMO 20N electric damper.
5. Burner: Italy Riello G10 diesel burner, 100000Kcal/h. The heating time 7-9min(20-60.C). Max. temperature at 80.C. Fuel consumption is 4-5kg/vehicle.
6. Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
7. Lighting System: Ceiling light has 24 pcs of 16w LED lamps. 1200 Lux.
8. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
9. Pollution Control System: Multi-layer fiberglass filter.

Model WW0602
External Size (m) 7x5.43x3.35
Internal Size (m) 6.9x3.9x2.65
Air Flow (m3/h) 20000
Air Speed (m/s) 0.3-0.5
Power (kw) 0.3-0.5
Vehicle Suited: Saloon Car Jeep

Affordable Economic Car Spray Booth with Advanced Heating System and Air Speed

Specification

item	value
Type	Spray Booths
Power	12KW
External Size	700055433350mm
Internal Size	690039002650mm
Voltage	220V/380V
Disc Dia.	NM
No Load Speed	NM
Place of Origin	China
	Guangdong
Brand Name	WINTAI
Model Number	WW0602
Warranty	1 year
Color	red,white, orange,blue
Wall	50mm
Heating System	diesel/gas/LPG burner
External Size	700055433350mm
Internal Size	690039002650mm
Air Flow	25000
Air Speed	0.3-0.5
Power	12KW
Vehicle Suited	Saloon Car Jeep
Warranty	1 year

Packing & Delivery

standard export package
