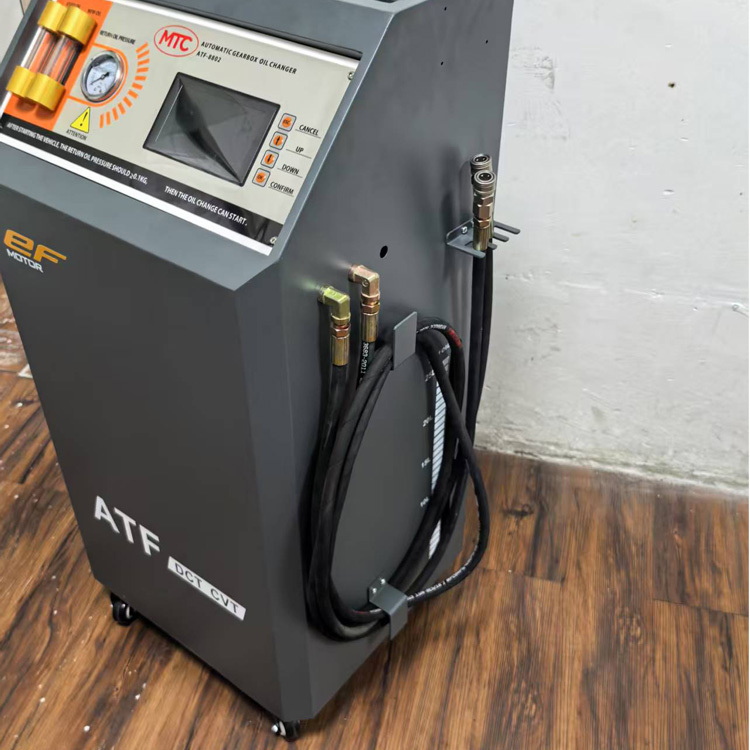

Fully Automatic Transmission Oil Changing And Cleaning Machine for Automobiles
Function :
1.Auto transmission fluid flow direction automatic identification
2.Automatically and intelligently control equivalent exchange with high accuracy
3.Recycle cleaning function
4.Auto transmission fluid filling settings on demand function
5.Auto transmission fluid recycling settings on demand function
6.Oil pressure of auto transmission radiator visual display
7.One button to change oil intelligently.
8.Fast oil change for low pressure vehicles.
9.Protection function for high pressure vehicles.
10.Automatically detect of electronic scales when booting device
11.Intelligently count of total oil consumption;
12.Self-setting function of total oil consumption locked;
13.One button to calibrate electronic scales function;
14.Colorful LCD display, easy to operate
15.Varies exclusive adapters suitable for European, American and Asian vehicles.
16.Effectively solve the problem of oil change incompletely;
17.Improve the performance of auto transmission
18.Extend the lifetime of auto transmission.
Feature of Software:
1. Protection function for high pressure vehicles.
When recycling volume is bigger than the filling volume, the recycling function is closed automatically
2.Protection function low pressure vehicles.
When recycling volume is smaller than the filling volume, the filling function is closed automatically.
3. Protection function for volume limitation.
Automatic error reporting when the volume of new/old oil tank volume bigger than 20L.
4. 59 seconds protection:
Automatic error reporting when any of procedure of filling, recycling or equivalent exchange last over 59s.
Working Environment:
Environment temperature: -10~+50℃
Relative Humidity: <65%
Hardware Parameter:
Voltage: DC220V or AC12V
Max Power: 150W
Pressure Gauge: 0~150psi
Oil Outlet Pipe: 2.5m
Oil Inlet Pipe: 2.5m
Accuracy of Filter: 5um

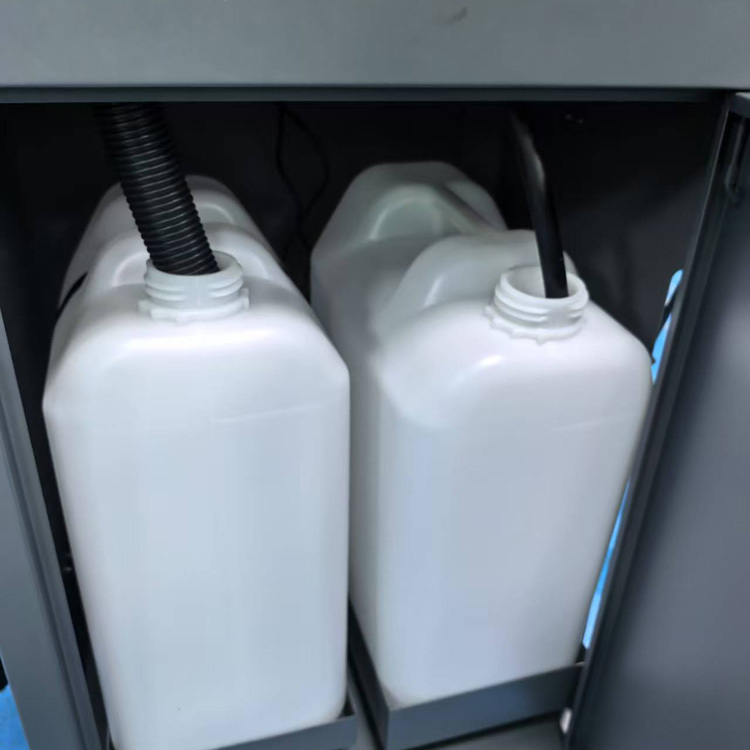

Oil Tank: 20LX2
Equivalent Oil Exchange Error: ±100g
Noise: <70db
Net Weight: 35KG
Machine Size: 475*425*1000mm
